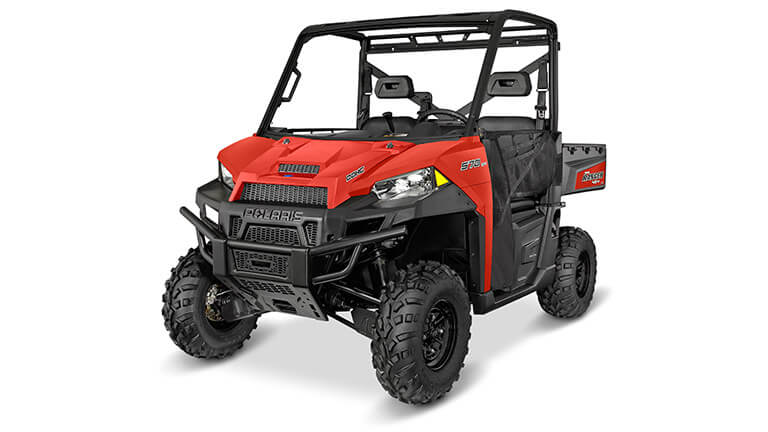

RANGER 570 Specifications

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
567cc
Drive System Type
On-Demand True AWD/2WD/VersaTrac Turf Mode
Engine Type
4-Stroke Single Cylinder DOHC
Fuel System/Battery
Electronic Fuel Injection
Horsepower
44 HP
Transmission/Final Drive
Automatic PVT H/L/N/R/P; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
32 x 42 x 11.5 in (81 cm x 107 cm x 29 cm)
Box Capacity
500 lb (226.8 kg)
Estimated Dry Weight
1,073 lb (486.7 kg)
Fuel Capacity
9 gal (34.1 L)
Ground Clearance
10 in (25.4 cm)
Hitch Towing Rating
1,500 lb (680.4 kg)
Overall Vehicle Size (L x W x H)
110 x 58 x 73 in (279 x 147 x 185 cm)
Payload Capacity
1,000 lb (453.6 kg)
Person Capacity
2
Wheelbase
73 in (185.4 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc
Parking Brake
Park In-Transmission

Additional Specifications

Adjustable Driver Seat
Not Equipped
Cargo System
Lock & Ride®
Hitch Type
Standard 2 in (5 cm) Receiver
Instrumentation
Single Analog Dial with 2" LCD Rider Information Center, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Volt Meter, Service Indicator and Codes, Seatbelt Reminder Light, DC Outlet
Lighting
50W Headlight, LED Tail
Tilt Steering
Standard

Tires / Wheels

Electronic Power Steering
Accessory
Front Tires
25 x 8-12; 489
Rear Tires
25 x 10-12; 489
Wheels
Stamped Steel

Suspension

Front Suspension
MacPherson Strut 9 in (22.9 cm) Travel
Rear Suspension
Dual A-Arm, IRS 10.0 in (25.4 cm) Travel
